纳米腔模式与光学垂直腔模式共存
发布日期:2011-07-17浏览次数:

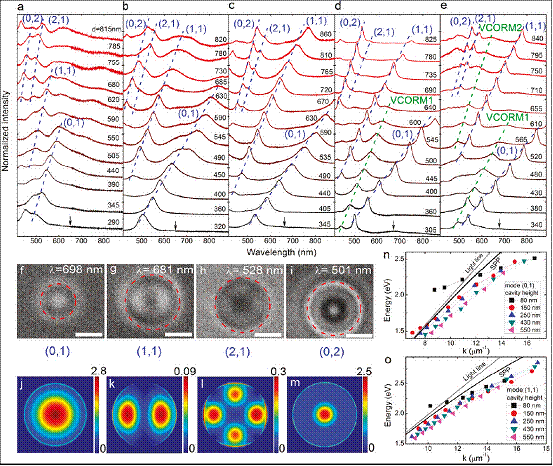

Figure: Spontaneous excitation of plasmonic resonant modes and vertical cavity resonant modes in Ag nanocavity via CL spectroscopy analysis. (a-e) CL spectra of nanocavities with 80, 150, 250,430, and 550 nm heights, respectively. The numbers on the right side of the figures indicate the diameters of the cavities in nm. The spectra were obtained when the electron beam was incident near the centers of the cavities. The plasmonic modes are classified and indicated with blue dotted lines and characters, respectively. Spectra are offset vertically for clarity. (f) Typical monochromatic CL image at a resonant wavelength of 698 nm for a cavity with a 490 nm diameter. (g-i) Typical monochromatic CL images at resonant wavelengths of 681, 528, and 501nmfor a cavity with a 765nmdiameter, respectively. The red dashed circles show the boundaries of the cavities. Scale bars are 500 nm. (j-m) Calculated intensity patterns of the out-of-plane electric components for the plasmonic modes (0, 1), (1, 1), (2, 1), and (0, 2), respectively. (n, o) Dispersions of plasmonic modes (0, 1) and (1, 1) in the nanocavities. The gray and black lines respectively represent the dispersions of light in vacuum and SPPs on an infinite Ag film.
